Description

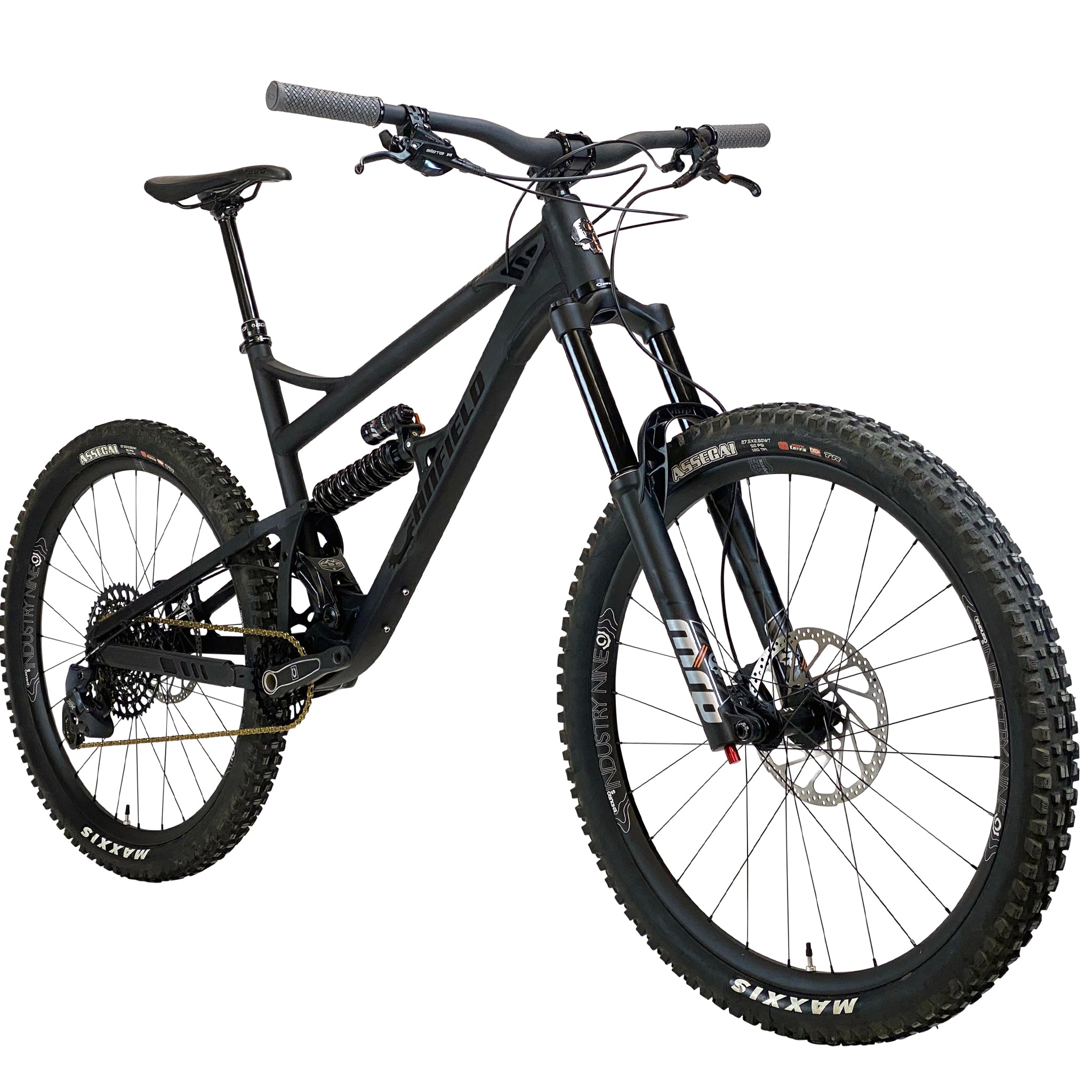

mountainbike balance CANFIELD BALANCE | AM / Enduro Bike | 27.5 | MULLET27. 5" WHEELS 169MM REAR 170MM FRONT Pedal. Send. Repeat. The Balance is our idea of what an all mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell to bell bike park laps, efficient enough to earn its turns. BALANCE COMPONENT OPTIONS Fork Cane Creek Helm MKII 170mm RockShox Zeb ULT A3 170mm Fox Factory 170mm (Contact
27.5" WHEELS // 169MM REAR // 170MM FRONT
Pedal. Send. Repeat. The Balance is our idea of what an all-mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell-to-bell bike-park laps, efficient enough to earn its turns.
| BALANCE | COMPONENT OPTIONS |
|---|---|
| Fork |
Cane Creek Helm MKII 170mm RockShox Zeb ULT A3 170mm Fox Factory 170mm (Contact for Pricing) |
| Shock |
Cane Creek Kitsuma Coil or Air |
| Drivetrain | SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t Cassette SRAM X01 Eagle Shifter, Derailleur, 10-52t Cassette Shimano XT Shifter, Derailleur, e13 Helix-R 9-50t Cassette |
| Cranks | Canfield All Mountain Cranks |
| Chainring | e*thirteen 32t Round |
| Brakeset | TRP Trail EVO w/203/180mm Rotors |
| Wheels | e*thirteen LG1+ Enduro (Contact for Mullet Build) |
| Tires | Maxxis DHF 2.5 | Maxxis DHR2 2.5 |
| Seatpost | SDG Tellis |
| Saddle | SDG Canfield Limited Edition |
| Handlebar | e*thirteen Base 800mm |
| Stem | e*thirteen Base 35 |
| Seat Clamp | Canfield Black Forged |
Complete builds may take 7-10 days to ship depending on in-stock inventory and parts availability.
FEATURES
-
27.5” All-Mountain / Enduro
- Mullet Compatible (160mm 29" fork recommended)
-
7005 aluminum with CNC links
- Patented Canfield Balance Formula™ Suspension
-
Custom Chainstay Protector
-
Internal Cable Routing
- Tapered headtube
-
15mm pivot bearings (6902 Max)
-
Water-bottle mount
-
Replaceable rear derailleur hanger
- Available in Small, Medium, Large and X-Large
FRAME SPECS
-
Shock Specs: Metric:
- 169mm travel: 230mm x 65mm (22mmX8mm/36mmX8mm hardware)
-
Recommend fork length: 170mm (160mm – 180mm acceptable range)
-
Headset: Tapered 44mm upper/56mm lower
-
Bottom bracket: 73mm BSA threaded
- Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
-
Seatpost: 30.9mm, stealth dropper compatible
-
Seatpost clamp: 35mm
-
Rear dropouts: Boost 148mm x 12mm, Canfield axle included
-
Rear tire clearance: 70mm/2.76 inches between stays
-
ISCG tabs: ISCG 05
-
Brake mount: Post 180mm
- Seatpost max insertion: 205mm(S), 225mm(M), 260mm(L), 305mm(XL)
| Size |
Small |
Medium |
Large |
XLarge |
|---|---|---|---|---|
|
Top Tube Length (Effective) |
592mm |
613mm |
635mm |
658mm |
|
Reach |
438mm |
457mm |
476mm |
496mm |
|
Stack |
606mm |
611mm |
620mm |
629mm |
|
Standover Height |
697mm |
725mm |
743mm |
762mm |
|
Seat Tube Length |
380mm |
410mm |
450mm |
490mm |
|
Wheel Base |
1190mm |
1216mm |
1241mm |
1265mm |
|
Head Tube Angle |
64° |
64° |
64° |
64° |
|
Seat Tube Angle (Effective) |
75.7° |
75.7° |
75.7° |
75.5° |
|
Seat Tube Angle (Actual) |
70.3° |
70.3° |
70.3° |
70.3° |
|
Chainstay Length |
420mm |
420mm |
420mm |
420mm |
|
Bottom Bracket Drop |
12.4mm |
12.4mm |
12.4mm |
12.4mm |
|
Bottom Bracket Height (*Approximate) |
343mm |
343mm |
343mm |
343mm |
|
Head Tube length |
115mm |
120mmm |
130mm |
140mm |
|
SIZE
|
S |
M
|
L
|
XL
|
|
RIDER HEIGHT
|
5'2"-5'7"
|
5'5"-5'11"
|
5'9"-6'3"
|
6'1"-6'6"
|
* Photos of bike/spec may vary slightly from actual spec based upon pre-production frame and availability of parts. Any substituted parts will be of equal or greater value than original option listed. Complete bikes ship as a frame and build kit. While frames are prepped, reamed, chased and faced, they do require experienced assembly. If you are not confident in fully assembling and tuning your new Canfield bike, we recommend visiting your favorite local bike shop.
